Product Description
Caldera Spas Heater Kit For Caldera Utopia, Aquatic Melodies & Paradise Series Spas 2016 To 2018.
Caldera Spas Models:
* Geneva
* Niagara
* Elation
* Aspire
* Moorea
* Salina
* Tahitian
* Hawaiian
* Martinique
* Kauai

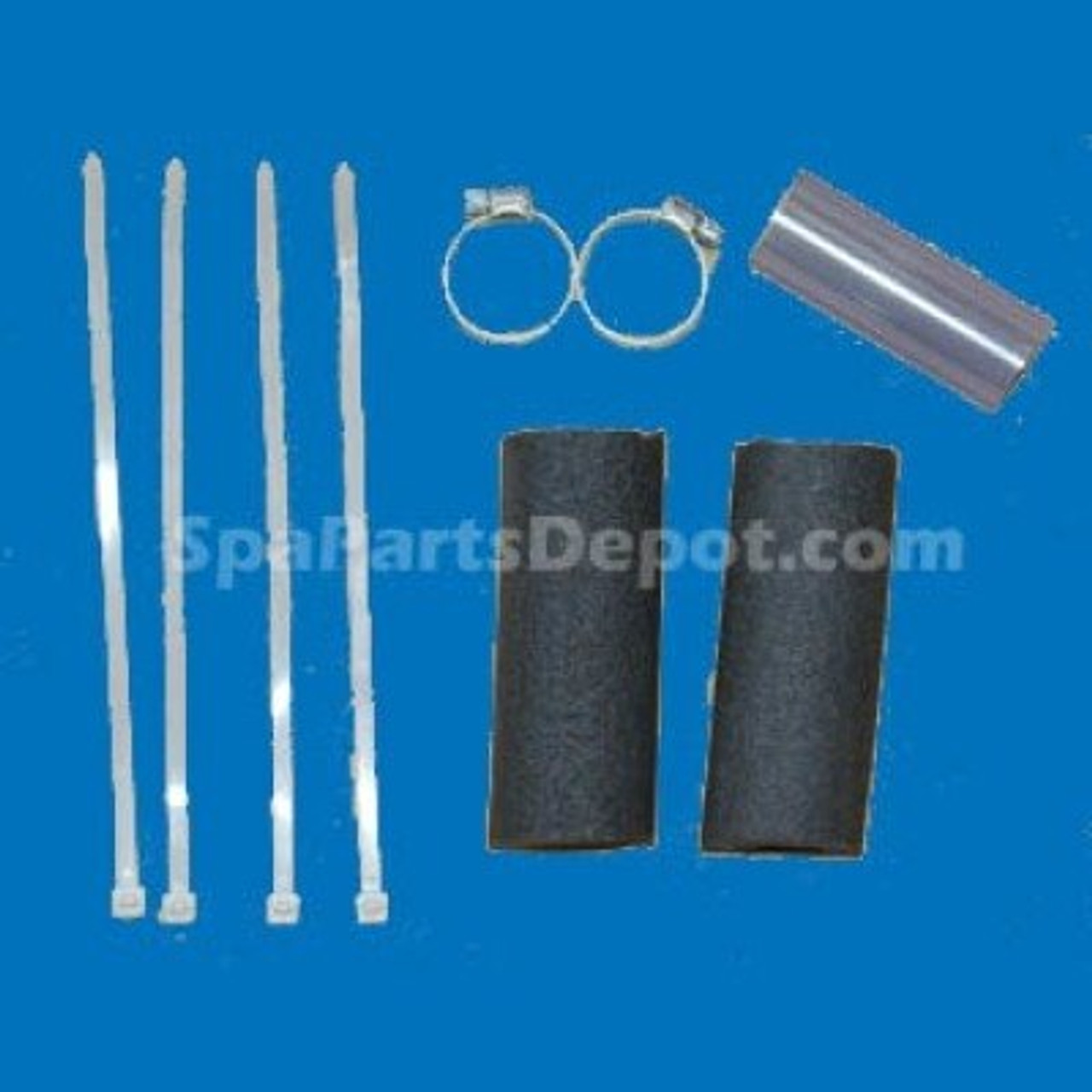

* Come With A 3/4 Barb Fitting On The Heater Barb Fitting. April 2008 And Earlier Models Have A 1" Comes With Adapter Fitting, Vinyl Tubing
* Internal Pressure Switch And Clamps.
2001 Models Must Use Adapter Kit #75002 To Convert The Three Prong Plug To Four Prong For The Balboa Systems In 2001
Also Known As Part Numbers:
* 72226
* 72494
* 72718
* 6595
* 39588
* 7340
* SEH-4300-NHW-6595
* C3473-1
* IHH-4300-NHW-7340
* Removing the Low Flow Heater:
* 1. Disconnect Power to the spa and access the equipment/pump compartment
* 2. Access the control box.
* 3. Disconnect the heater and pressure switch connector wires from the terminals.
* 4. Disconnect the copper bonding wire attached to the side of the heater or control box. (if necessary).
* 5. Unscrew the heater at the base from the floor of the equipment compartment.
* 6. If the spa is undrained, clamp inlet and outlet hose 6 inches from the heater inlet and outlet barb fittings with hose clamps.
* 7. Slide the hose retaining clamps back towards the hose clamps allowing enough room to pull the hoses from the heater barbed fittings.
* 8. Remove the pressure switch and attached to new heater.
Installation:
* 1. Install the new heater in the reverse order of removal
Note:
* Allow a 1"-2" loop of wire between the control box and the power terminals. This is
called a service loop, and will allow for the use of an amp clamp in future troubleshooting.
* After installation check for leaks.
